Cryopreservation and Sample Integrity: Maintaining Cell Function Across Biospecimen Formats

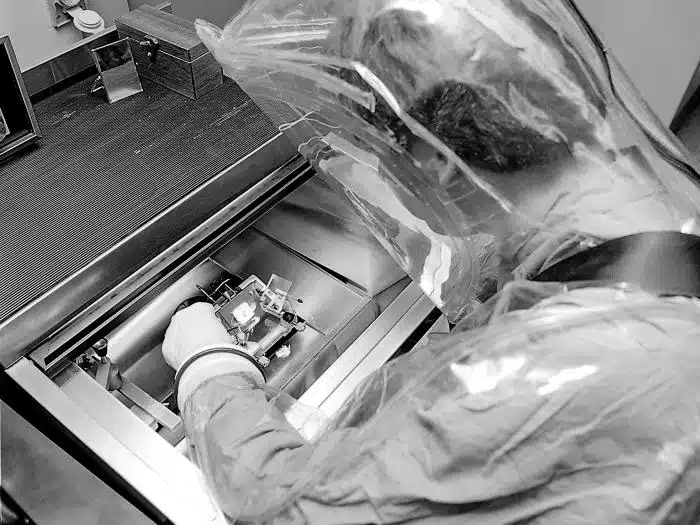

Photo Credit: CDC/ Betty Partin

Cryopreservation technology has transformed biomedical research by enabling specimen collection to be temporally and geographically decoupled from experimental analyses. Biobanks containing millions of cryopreserved specimens support retrospective studies, multi-center trials, and longitudinal cohorts spanning decades. Yet the physics and biology of freezing living cells present formidable challenges—ice crystal formation disrupts cellular membranes, osmotic stress damages organelles, and oxidative injury accumulates during thawing. The difference between cryopreservation protocols that yield >90% viable, functional cells versus those producing cellular debris masquerading as viable specimens often determines experimental success or catastrophic failure.

The breadth of cellular products requiring cryopreservation in modern research—from Human PBMCs and Human Leukopak to isolated Human CD3+ T Cells and Human CD56+ NK Cells—demands nuanced understanding of cell type-specific cryopreservation requirements. Lymphocytes generally tolerate cryopreservation better than granulocytes or monocytes, yet even within lymphocyte populations, naive T cells demonstrate superior post-thaw recovery compared to terminally differentiated effectors.[1] At Sanguine, our validated cryopreservation protocols for each cellular product type ensure consistent post-thaw viability exceeding 85% while maintaining functional competence critical for downstream applications. From study design to receipt of samples, our standardized approaches minimize technical variability, enabling researchers to focus on biological questions rather than troubleshooting technical artifacts.

Fundamental Principles of Cellular Cryopreservation

The primary mechanism of cryoinjury involves intracellular ice crystal formation that physically disrupts cellular membranes and organelles. As extracellular fluid freezes, osmotic gradients draw water from cells, concentrating intracellular solutes to potentially toxic levels.[2] If cooling proceeds too rapidly, insufficient time exists for osmotic equilibration and intracellular water freezes, forming damaging ice crystals. If cooling proceeds too slowly, prolonged exposure to hypertonic conditions and solute toxicity damages cells before complete freezing occurs. This competing damage mechanism defines an optimal cooling rate—typically 1°C per minute for most mammalian cells—balancing osmotic injury against ice crystal damage.

Cryoprotectant agents (CPAs) mitigate freezing injury through multiple mechanisms including colligative property modification, membrane stabilization, and glass transition promotion at low temperatures. Dimethyl sulfoxide (DMSO) penetrates cells rapidly and remains the most widely used CPA in biological cryopreservation, typically employed at 10% (v/v) concentrations.[3] DMSO reduces intracellular ice formation by lowering the freezing point and promoting vitrification—a glass-like solid state avoiding crystalline ice formation entirely at sufficiently low temperatures and high CPA concentrations. However, DMSO exhibits cellular toxicity, necessitating rapid removal after thawing to prevent delayed damage.

Protein-based cryoprotectants including human serum albumin (HSA), fetal bovine serum (FBS), or autologous Human Plasma supplement DMSO in many cryopreservation media formulations. These macromolecules stabilize cell membranes during osmotic stress, scavenge free radicals generated during thaw, and provide metabolic substrates supporting initial post-thaw recovery.[4] The optimal protein concentration balances cryoprotective benefits against osmotic load and cost considerations. Sanguine’s validated media formulations combine DMSO with pharmaceutical-grade HSA in proportions optimized for each cell type.

Controlled-rate freezing using programmable freezers offers superior reproducibility compared to passive freezing methods. Controlled-rate freezers precisely regulate temperature changes, typically starting at 4°C and cooling at 1°C per minute to -40°C, followed by faster cooling to -80°C or direct transfer to liquid nitrogen vapor phase.[5] Seeding—the nucleation of ice crystal formation at defined temperatures—occurs spontaneously during controlled cooling but can be artificially induced to further standardize the freezing process. While specialized equipment represents significant capital investment, the improved consistency and cell recovery often justify costs for high-value specimens or clinical applications.

Cell Type-Specific Cryopreservation Considerations

Human PBMCs represent the most commonly cryopreserved cellular product in immunological research, with well-established protocols yielding consistently high post-thaw viability when properly executed. However, PBMC populations encompass multiple cell types with varying cryosensitivity—lymphocytes tolerate freezing well while monocytes demonstrate increased susceptibility to cryoinjury.[6] Post-thaw PBMC preparations exhibiting excellent viability by trypan blue exclusion may contain disproportionate monocyte death, altering cellular composition relative to pre-freeze samples.

Functional validation proves essential for confirming cryopreservation protocol success beyond simple viability metrics. Thawed PBMCs should demonstrate robust proliferative responses to mitogenic stimulation (anti-CD3/CD28, PHA) comparable to fresh cells. Cytokine production capacity (IFN-γ, TNF-α, IL-2) following activation serves as sensitive functional readout, with high-quality cryopreserved cells achieving 80-90% of fresh cell cytokine levels.[7] Flow cytometry-based immunophenotyping reveals whether cell surface marker expression remains stable through freeze-thaw cycles or exhibits alterations suggesting compromised cellular integrity.

Human CD3+ T Cells and Human CD56+ NK Cells isolated before cryopreservation require adaptation of standard PBMC protocols to account for activation state and differentiation status. Pre-activated or expanded cells entering cryopreservation often demonstrate reduced post-thaw recovery compared to resting cells, necessitating increased CPA concentrations or modified cooling rates.[8] The timing of cryopreservation within cell culture or expansion protocols significantly impacts recovery—cells cryopreserved during exponential growth typically recover better than those frozen at confluence or during growth plateau phases.

NK cell cytotoxic function proves particularly sensitive to cryopreservation stress, with post-thaw degranulation capacity and target cell killing efficiency critical functional metrics. Maintenance of NK cell activating receptor expression (NKG2D, NKp46, CD16) and appropriate ratios of inhibitory to activating signals ensures preserved cytotoxicity.[9] Human CD56+ NK Cells from Sanguine undergo functional validation confirming >40% specific lysis of K562 target cells at 10:1 effector-to-target ratios, ensuring suitability for cytotoxicity assays and therapeutic development applications.

Large-volume leukapheresis products including Human Leukopak and GMP Leukopak preparations present unique cryopreservation challenges related to scale and cell concentration. High cell concentrations (>100 million cells/mL) during freezing can reduce post-thaw viability through cell-cell interactions and insufficient CPA penetration to inner cells in dense suspensions.[10] Optimal cell concentrations for leukopak cryopreservation typically range from 50-100 million cells/mL, balancing storage efficiency against recovery optimization. Multiple cryovials from single leukopak collections enable dose-dependent studies, comparative protocols, or quality control sampling without requiring complete product thaw.

Cryopreservation Protocol Optimization Strategies

Cooling Rate Optimization for Maximum Viability

Systematic optimization of cooling rates for specific cell types requires empirical testing across multiple cooling velocities measuring post-thaw viability, functional competence, and phenotypic stability. The classic approach employs passive cooling in isopropanol-filled freezing containers providing approximately 1°C per minute cooling when placed in -80°C freezers.[11] This simple methodology offers reproducibility and convenience but lacks precise control over cooling profiles and temperature gradients within containers.

Controlled-rate freezers enable systematic evaluation of complex cooling profiles including variable cooling rates at different temperature ranges. Some protocols benefit from slower cooling through the critical -5°C to -40°C range where ice crystal formation primarily occurs, followed by faster cooling to storage temperature.[12] Other applications perform better with initial rapid cooling followed by slower rates as samples approach -50°C. These nuanced protocols require empirical optimization but can significantly improve recovery for challenging cell types or applications demanding maximal functional preservation.

Critical Cooling Parameters for Optimization:

• Initial cooling rate from 4°C to -20°C (typically 1°C/min)
• Cooling rate through ice formation zone -20°C to -40°C
• Final cooling rate to storage temperature
• Temperature hold steps enabling osmotic equilibration
• Ice seeding temperature and methodology
• Starting cell concentration effects on optimal cooling
• Cryovial wall thickness and material affecting heat transfer
• Sample volume influencing cooling uniformity
• Post-freeze handling temperature maintenance
• Transfer timing to long-term storage

Cryoprotectant Media Formulation

DMSO concentration represents the most frequently optimized CPA parameter, with 10% (v/v) serving as standard but applications ranging from 5-15% depending on cell type and cooling rate. Lower DMSO concentrations reduce chemical toxicity but provide less cryoprotection, requiring precisely controlled cooling to compensate.[13] Higher DMSO concentrations offer enhanced cryoprotection enabling slightly faster cooling rates but increase post-thaw toxicity necessitating rapid DMSO removal.

Protein supplementation in cryopreservation media varies across applications. Pharmaceutical-grade human serum albumin (HSA) at 2-5% provides membrane stabilization and free radical scavenging without animal-derived components, supporting GMP applications where xenogeneic proteins must be avoided.[14] Fetal bovine serum (FBS) at 20-40% concentrations offers robust cryoprotection at lower cost for research applications, though lot-to-lot variability and potential adventitious agent risks warrant consideration. Some protocols successfully employ autologous Human Plasma providing patient-matched protein supplementation eliminating xenogeneic concerns entirely.

Specialized additives enhance cryopreservation for particular applications. Trehalose, a non-reducing disaccharide, stabilizes membranes and proteins during freezing but penetrates cells poorly, requiring permeabilization or intracellular delivery strategies.[15] Polyvinylpyrrolidone (PVP) and hydroxyethyl starch (HES) serve as extracellular cryoprotectants reducing ice crystal formation in extracellular spaces. Antioxidants including ascorbic acid, catalase, or reduced glutathione scavenge reactive oxygen species generated during thawing. Optimal formulations balance multiple mechanisms of cryoprotection while maintaining osmolality within tolerable ranges.

Storage Conditions and Long-Term Stability

Storage temperature profoundly affects cryopreserved specimen longevity, with -80°C freezers providing short-term storage but exhibiting measurable deterioration over months to years, while liquid nitrogen storage (-196°C in liquid phase, -165°C in vapor phase) maintains stability for decades.[16] The glass transition temperature for typical CPA formulations occurs around -130°C, below which molecular motion essentially ceases and degradative processes become negligible. Specimens stored above glass transition temperatures experience gradual degradation even while frozen.

Liquid nitrogen storage introduces operational considerations including vapor phase versus liquid phase immersion. Vapor phase storage slightly warming specimens to approximately -165°C reduces cross-contamination risks from specimens immersed in shared liquid nitrogen but requires greater nitrogen consumption maintaining vapor pressure.[17] Liquid phase immersion at -196°C provides maximum stability but necessitates individually sealed specimen containers preventing liquid nitrogen entry and sample-to-sample contamination. Large biobanks increasingly favor vapor phase systems balancing stability with safety.

Temperature excursion events during storage—even brief warming to -40°C during freezer malfunctions—can significantly impact specimen quality. Continuous temperature monitoring with alarm systems, backup generators, and redundant storage locations protect valuable specimen collections from catastrophic losses.[18] Documentation of any temperature excursions enables researchers to assess potential impacts on data quality or exclude affected specimens from analyses. Sanguine’s monitored storage systems maintain specimens at validated temperatures with complete temperature history records.

Freeze-thaw cycles represent perhaps the most damaging event in cryopreserved specimen lifecycles, with each cycle inducing ice crystal reformation and cellular membrane stress. Single-aliquot strategies—freezing specimens in volumes matched to anticipated single-use requirements—eliminate freeze-thaw cycle exposure but require accurate volume planning during initial specimen processing.[19] The trade-off between storage efficiency (larger aliquots) and freeze-thaw avoidance (smaller aliquots) depends on specimen value, storage capacity constraints, and expected experimental requirements.

Thawing Protocols: Maximizing Post-Thaw Cell Recovery

Thawing represents a critical stress point in cryopreserved specimen lifecycles, with rapid warming essential for minimizing ice crystal growth during temperature transition from frozen to liquid states. The consensus approach involves rapid thawing in 37°C water baths with gentle agitation, warming samples from -196°C to 0°C within 1-2 minutes.[20] Some protocols demonstrate improved recovery using 40°C water baths, though excessive temperatures (>42°C) denature proteins and compromise cell membranes.

The post-thaw DMSO removal strategy significantly impacts cell recovery and function. Immediate or delayed DMSO removal involves adding supplemented media to dilute DMSO concentration below toxic levels (typically <0.5%) then centrifuging to completely remove DMSO-containing supernatant.[21] Rapid dilution minimizes DMSO exposure time but subjects cells to osmotic shock. Gradual dilution over 5-10 minutes with sequential media additions reduces osmotic stress. The optimal approach varies by cell type and immediate post-thaw application requirements.

Post-thaw rest periods enable cellular recovery and membrane repair processes before experimental manipulation or analysis. Resting thawed Human PBMCs for 2-24 hours in culture media at 37°C with 5% CO2 significantly improves functional assay performance compared to immediate post-thaw applications.[22] Flow cytometry can typically be performed within hours of thawing once cells have recovered from immediate thaw stress. Functional assays including proliferation, cytokine production, and cytotoxicity benefit from extended rest periods allowing metabolic recovery and restoration of cellular functions compromised during cryopreservation.

Quality control testing of thawed specimens should encompass viability, recovery, and functional validation. Post-thaw viability measured by trypan blue exclusion or flow cytometry-based vital dye exclusion (7-AAD, propidium iodide) provides initial assessment. Cell recovery calculation—total viable cells recovered divided by total viable cells frozen—quantifies cryopreservation protocol efficiency.[23] Functional assays appropriate to specimen type and intended application provide the ultimate measure of cryopreservation success.

Critical Parameters for Successful Cryopreservation

Understanding the complete parameter space affecting cryopreservation outcomes enables protocol optimization and troubleshooting when recovery rates prove suboptimal. Multiple variables interact in complex ways, sometimes requiring factorial experimental designs to identify optimal combinations.

Pre-Freeze Optimization Factors

Cell Culture and Processing Conditions:

• Cell health before freezing (viability >95% optimal)
• Activation state (resting cells preferred over activated)
• Cell cycle phase distribution affecting recovery
• Culture passage number for expanded cells
• Time from isolation to cryopreservation (<24 hours ideal)
• Washing steps removing culture media or plasma proteins
• Cell concentration during freezing (50-100M cells/mL typical)
• Media composition immediately before freezing
• Centrifugation forces used in processing
• Mechanical stress minimization during handling

Freezing Process Parameters

Cooling Profile Variables:

• Starting temperature (typically 4°C after CPA addition)
• Cooling rate in degrees per minute
• Hold temperatures enabling osmotic equilibration
• Ice seeding temperature and induction method
• Final freezing temperature before storage transfer
• Time at each temperature during profile
• Freezing container thermal properties
• Sample volume affecting cooling uniformity
• Cell concentration affecting heat transfer
• Environmental temperature during freezing process

Storage and Handling Controls

Long-Term Stability Factors:

• Storage temperature (-80°C vs. liquid nitrogen)
• Temperature stability and fluctuation monitoring
• Freeze-thaw cycle documentation and limits
• Storage duration with periodic viability validation
• Storage orientation (upright vs. horizontal)
• Cryovial seal integrity verification
• Inventory management minimizing freeze-thaw risk
• Backup storage location redundancy
• Transfer protocols between storage locations
• Emergency backup power and nitrogen supply

Thaw Process Optimization

Recovery Protocol Variables:

• Thawing temperature (typically 37°C water bath)
• Thawing velocity (rapid thaw 1-2 minutes preferred)
• Agitation during thawing (gentle swirling)
• DMSO dilution strategy (rapid vs. stepwise)
• Post-thaw medium composition and temperature
• Centrifugation parameters for DMSO removal
• Rest period duration before analysis
• Cell concentration during recovery incubation
• Recovery media supplements (growth factors, antioxidants)
• Quality assessment timing post-thaw

Distinguishing Viable and Functional Cells Post-Thaw

Viability measurements provide necessary but insufficient information about cryopreservation success. Cells may exclude vital dyes satisfying viability criteria yet harbor compromised functional competence, apoptotic programming, or phenotypic alterations affecting experimental outcomes.[24] Comprehensive post-thaw assessment combines viability, phenotyping, and functional validation tailored to intended applications.

Flow cytometry-based viability assessment using membrane-impermeant DNA dyes (7-AAD, propidium iodide) offers advantages over trypan blue, including compatibility with immunophenotyping enabling simultaneous cell type identification and viability measurement. Forward and side scatter characteristics identify cellular debris and provide morphological assessment complementing dye-exclusion measurements.[25] Early apoptotic cells identified by Annexe V positivity with vital dye exclusion may appear viable by trypan blue but demonstrate compromised function and limited lifespan.

Phosphatidylserine exposure on outer membrane leaflets, detected by Annexin V binding, identifies apoptotic cells initiated toward programmed death pathways even before plasma membrane integrity fails. These cells exclude vital dyes appearing “viable” but demonstrate compromised proliferation, reduced cytokine production, and altered responses in functional assays.[26] Distinguishing truly viable cells from early apoptotic populations provides more accurate functional viability predictions than vital dye exclusion alone.

Metabolic activity assessment using fluorescent mitochondrial potential probes or ATP quantification reveals cellular energetic competence invisible to membrane integrity assays. Cells may maintain membrane integrity temporarily after severe cryoinjury but lack mitochondrial function supporting proliferation or effector functions.[27] These metabolic viability assays prove particularly valuable for cells intended for long-term culture, expansion, or in vivo applications where sustained cellular function is required.

Optimizing Cryopreservation for Specialized Applications

Flow Cytometry and Immunophenotyping

Cryopreserved specimens intended for flow cytometry applications require particular attention to cell surface marker stability through freeze-thaw cycles. Most lymphocyte markers including CD3, CD4, CD8, CD45 isoforms, and chemokine receptors remain stable with minimal expression changes post-thaw.[28] However, activation markers (CD69, CD25), adhesion molecules, and some cytokine receptors demonstrate altered expression, complicating activation state interpretation in cryopreserved specimens.

Compensation challenges emerge when analyzing cryopreserved cells by multi-parameter flow cytometry due to increased autofluorescence from damaged cellular components and altered light scattering properties. Fresh unstained controls from cryopreserved samples enable appropriate gating strategies accounting for these optical differences.[29] Single-stain compensation controls should utilize cryopreserved cells when experimental samples are cryopreserved, as fluorescence characteristics differ between fresh and frozen cells affecting spillover calculations.

Single-Cell Transcriptomics

Single-cell RNA sequencing applications impose stringent quality requirements beyond conventional flow cytometry or functional assays. Cryopreservation stress induces transcriptional responses including immediate-early gene expression, stress response pathway activation, and altered mitochondrial gene signatures.[30] These freeze-thaw artifacts can confound disease signature identification if not properly controlled through matched fresh cell comparisons or computational approaches accounting for cryopreservation effects.

Ambient RNA contamination from lysed cells during thawing represents a serious artifact in single-cell RNA sequencing, with high-quality protocols maintaining <5% ambient RNA as indicated by high mitochondrial read percentages.[31] Gentle thawing, immediate DMSO removal, DNase treatment to eliminate extracellular nucleic acids, and rapid single-cell encapsulation minimize ambient RNA detection. Our Human PBMCs cryopreservation protocols are optimized to meet single-cell sequencing requirements.

CAR-T and Cell Therapy Manufacturing

Clinical-grade cryopreservation for cell therapy starting material demands GMP compliance and validation demonstrating consistent recovery meeting predetermined specifications. GMP Leukopak cryopreservation employs pharmaceutical-grade reagents, validated equipment, and comprehensive batch documentation supporting regulatory submissions.[32] Every manufacturing run begins with cryopreserved starting material meeting defined critical quality attributes including viability, recovery, and functional parameters.

Process validation for clinical cryopreservation protocols typically includes 3 qualification runs at commercial scale demonstrating consistency followed by ongoing process monitoring through commercial manufacturing. Acceptance criteria for each critical parameter (viability >85%, recovery >70%, functional assay performance) must be prospectively defined.[33] Out-of-specification results trigger investigations and potential process adjustments within validated ranges. This systematic approach ensures product consistency critical for regulatory approval and reproducible clinical outcomes.

Post-Thaw Quality Verification Protocols

Systematic quality assessment immediately post-thaw identifies specimens unsuitable for downstream applications before consuming valuable reagents, labor, and time on failed experiments. The following verification workflow minimizes wasted resources while maximizing data quality.

Immediate Assessment (Within 2 Hours Post-Thaw)

Visual and Gross Quality Inspection:

• Cryovial integrity and labeling verification
• Thawing time documentation
• Visual inspection for particulates or unusual color
• Phase-contrast microscopy assessment of cell morphology
• Cell clumping evaluation (high clumping suggests damage)
• Debris quantification by microscopy or flow cytometry
• Sample temperature verification after thaw
• Photographic documentation of sample appearance

Quantitative Viability Metrics:

• Automated cell counting with viability discrimination
• Trypan blue exclusion manually validated
• Flow cytometry viability (7-AAD or propidium iodide)
• Cell recovery calculation (viable cells post-thaw / viable cells pre-freeze)
• Viability acceptance threshold enforcement (typically ≥85%)
• Cell concentration verification meeting requirements
• Total viable cell yield confirmation
• Comparison to historical batch performance

Functional Validation (6-24 Hours Post-Thaw)

Cellular Function Assessment:

• Short-term culture viability maintenance (24-hour incubation)
• Proliferation capacity using [3H]-thymidine incorporation or CFSE dilution
• Cytokine production following PMA/ionomycin stimulation
• Antigen-specific responses using recall antigens
• Cytotoxic function for NK cells or cytotoxic T cells
• Phagocytosis assays for monocyte-containing preparations
• Chemotaxis or migration assays when relevant
• Comparison to fresh cell control performance

Phenotypic Stability Verification:

• Flow cytometry immunophenotyping panel
• Major cell subset frequencies (T cell, B cell, NK cell, monocyte)
• CD4:CD8 ratio maintenance
• Memory subset distribution (naive, CM, EM, TEMRA)
• Activation marker expression levels
• Exhaustion marker assessment (PD-1, TIM-3, LAG-3)
• Costimulatory receptor maintenance (CD28, CD27)
• Comparison to pre-freeze phenotypic profile

Troubleshooting Poor Post-Thaw Recovery

When post-thaw viability or function falls below acceptable thresholds, systematic troubleshooting identifies causal factors enabling protocol corrections. Common failure modes include cooling rate optimization, CPA toxicity, osmotic injury, ice crystal damage, or storage condition compromises.

Low viability (<70%) with high recovery suggests cellular death occurred before freezing rather than during cryopreservation itself. Pre-freeze cell health, processing stress, or extended delays between isolation and cryopreservation often underlie this failure pattern.[34] Solutions include minimizing processing time, optimizing centrifugation parameters to reduce mechanical stress, and ensuring cells remain at appropriate temperatures throughout handling.

High viability (>85%) but poor functional performance suggests cells survived physically but sustained functional damage during cryopreservation. This pattern often indicates suboptimal cooling rates, excessive DMSO exposure, or inadequate post-thaw recovery periods.[35] Systematic cooling rate optimization, DMSO contact time reduction, and extended rest periods before functional assays typically resolve these issues. For Human CD3+ T Cells and Human CD56+ NK Cells, overnight rest in culture medium significantly improves functional assay outcomes.

Low recovery (<50%) regardless of viability indicates substantial cell loss during thawing, washing, or DMSO removal steps. Mechanical stress from vigorous pipetting, excessive centrifugation forces, or temperature shocks during dilution damage cells already stressed by cryopreservation.[36] Gentler handling, reduced centrifugation forces (300g rather than 500g), and gradual DMSO dilution improve recovery. Calculating recovery at multiple process steps isolates where losses occur.

Regulatory and Quality System Requirements

Clinical and regulatory applications demand validated cryopreservation protocols with demonstrated consistency across multiple lots and operators. Process validation typically involves qualification runs demonstrating that predefined acceptance criteria are met consistently, followed by ongoing monitoring verifying continued process control.[37] Validation protocols specify all critical parameters, acceptable ranges, and testing frequencies ensuring regulatory compliance.

Quality management systems for GMP cryopreservation require comprehensive documentation including standard operating procedures, batch records, equipment qualification and calibration records, operator training documentation, and change control procedures. Root cause investigations and corrective/preventative actions (CAPA) address out-of-specification results systematically.[38] Sanguine’s ISO 13485:2016-certified quality system ensures GMP Leukopak cryopreservation meets pharmaceutical-grade standards.

Chain of custody documentation tracks specimens from collection through cryopreservation and storage, providing complete traceability supporting regulatory inspections and audit trails. Electronic laboratory notebooks, specimen tracking databases, and real-time monitoring systems generate automatically documented records resistant to data integrity issues plaguing paper- based systems.[39] These infrastructure investments support both research rigor and regulatory compliance.

Emerging Technologies in Cryopreservation

Ice-free cryopreservation approaches including vitrification eliminate ice crystal formation entirely by achieving glass transitions rather than crystalline freezing. This requires very high CPA concentrations (>40%) or cooling rates approaching 20,000°C per minute.[40] While these methods show promise for oocytes and embryos, application to larger cell volumes like Human Leukopak remains challenging due to CPA toxicity and achieving uniform ultra-rapid cooling throughout specimens.

Magnetic nanoparticle-enhanced cryopreservation represents an experimental approach using magnetic fields to control ice nucleation and growth. Iron oxide nanoparticles dispersed in CPA media enable external magnetic control over freezing processes, potentially improving cooling uniformity in large volumes.[41] While preliminary results show promise, translation to clinical applications requires extensive safety validation ensuring complete nanoparticle removal and absence of cellular uptake.

DMSO-free cryopreservation protocols using alternative CPAs including glycerol, ethylene glycol, or synthetic polymers address concerns about DMSO toxicity and regulatory status. While successful for some cell types, most protocols achieve lower recovery than optimized DMSO-based approaches.[42] Research continues on novel CPA formulations combining multiple agents at reduced individual concentrations, potentially achieving equivalent cryoprotection with reduced toxicity.

Sanguine’s Validated Cryopreservation Excellence

Our comprehensive cryopreservation validation studies spanning multiple cell types and specimen formats ensure consistent high-quality outcomes researchers depend on for successful experiments. Human PBMCs, Human Leukopak, Human CD3+ T Cells, and Human CD56+ NK Cells all undergo validated cryopreservation using optimized protocols specific to each product.[43]

Certificates of analysis accompanying every cryopreserved product document pre-freeze viability, post-thaw viability (typically >85%), cell recovery rates, and functional validation data. This transparency enables researchers to select specimens meeting specific quality thresholds for their applications. Quality control testing on representative specimen aliquots from each lot provides real-time verification of cryopreservation success before shipments, protecting customers from receiving suboptimal material.

Our quality management system maintains detailed records of cryopreservation conditions including freezing dates, equipment used, operator identities, and complete temperature histories. This documentation supports good laboratory practices, enables root cause investigation if quality issues arise, and provides regulatory documentation for clinical applications.[44] From study design to receipt of samples, our cryopreservation expertise ensures cellular products arrive ready for immediate use with minimal technical variables compromising research outcomes.

---

Check Our Inventory

Ready to eliminate cryopreservation variables from your research with validated, high-quality cellular biospecimens?

Explore our comprehensive inventory of cryopreserved Human PBMCs, Human Leukopak, and isolated immune cell products. Our scientific specialists can discuss your specific application requirements and recommend optimal cryopreserved or fresh specimen formats.

Request a Custom Quote →

---

Ethical Sourcing and Regulatory Compliance

All Sanguine biospecimens are collected under IRB-approved protocols with comprehensive informed consent from every donor. Our HIPAA-compliant data management systems protect donor privacy while enabling researchers to access detailed genomic annotation supporting their studies. We maintain ISO 9001:2015 and ISO 13485:2016 certifications demonstrating our commitment to quality management across all operations.

Donor compensation follows ethical guidelines established by professional societies, ensuring voluntary participation without coercion. Geographic diversity in our collection network across the United States supports health equity in research while providing access to underrepresented populations often excluded from biomedical studies. Every specimen is designated Research Use Only (RUO) with clear documentation of its intended application scope.

---

References

1. Klebanoff CA, Gattinoni L, Restifo NP. Sorting through subsets: which T-cell populations mediate highly effective adoptive immunotherapy? J Immunother. 2012;35(9):651-660. doi:10.1097/CJI.0b013e31827806e6

2. Mazur P. Freezing of living cells: mechanisms and implications. Am J Physiol. 1984;247(3 Pt 1):C125-C142. doi:10.1152/ajpcell.1984.247.3.C125

3. Lovelock JE, Bishop MW. Prevention of freezing damage to living cells by dimethyl sulphoxide. Nature. 1959;183(4672):1394-1395. doi:10.1038/1831394a0

4. Thirumala S, Gimble JM, Devireddy RV. Cryopreservation of stromal vascular fraction of adipose tissue in a serum-free freezing medium. J Tissue Eng Regen Med. 2010;4(3):224-232. doi:10.1002/term.232

5. Pegg DE. Principles of cryopreservation. Methods Mol Biol. 2007;368:39-57. doi:10.1007/978-1-59745-362-2_3

6. Smith JG, Joseph HR, Green T, et al. Establishing acceptance criteria for cell-mediated immunity assays using frozen peripheral blood mononuclear cells stored under optimal and suboptimal conditions. Clin Vaccine Immunol. 2007;14(5):527-537. doi:10.1128/CVI.00435-06

7. Weinberg A, Zhang L, Brown D, et al. Viability and functional activity of cryopreserved mononuclear cells. Clin Diagn Lab Immunol. 2000;7(4):714-716. doi:10.1128/CDLI.7.4.714-716.2000

8. Disis ML, dela Rosa C, Goodell V, et al. Maximizing the retention of antigen specific lymphocyte function after cryopreservation. J Immunol Methods. 2006;308(1-2):13-18. doi:10.1016/j.jim.2005.09.011

9. Lundqvist A, Berg L, Najafi A, et al. Efficient separation of plasma and erythrocytes from apheresis products followed by in vitro expansion of cytokine-induced killer cells under good manufacturing practice conditions. Cytotherapy. 2006;8(5):483-489. doi:10.1080/14653240600925208

10. Stroncek DF, Fellowes V, Pham C, et al. Counter-flow elutriation of clinical peripheral blood mononuclear cell concentrates for the production of dendritic and T cell therapies. J Transl Med. 2004;2:23. doi:10.1186/1479-5876-2-23

11. Cox CS Jr, Jiao H, Raval JS. Cryopreservation of hematopoietic stem cells: emerging assays, cryoprotectant agents, and technology to improve outcomes. Transfusion. 2011;51(Suppl 4):54S-59S. doi:10.1111/j.1537-2995.2011.03378.x

12. Polge C, Smith AU, Parkes AS. Revival of spermatozoa after vitrification and dehydration at low temperatures. Nature. 1949;164(4172):666. doi:10.1038/164666a0

13. Germann A, Oh YJ, Schmidt T, et al. Temperature fluctuations during deep temperature cryopreservation reduce PBMC recovery, viability and T-cell function. Cryobiology. 2013;67(2):193-200. doi:10.1016/j.cryobiol.2013.06.012

14. Bakken AM. Cryopreserving human peripheral blood progenitor cells. Curr Stem Cell Res Ther. 2006;1(1):47-54. doi:10.2174/157488806775269179

15. Eroglu A, Russo MJ, Bieganski R, et al. Intracellular trehalose improves the survival of cryopreserved mammalian cells. Nat Biotechnol. 2000;18(2):163-167. doi:10.1038/72608

16. Hubel A, Carlquist D, Clay M, McCullough J. Cryopreservation of lymphocytes for detection of antigen-specific responses. Cryobiology. 2004;48(2):194-206. doi:10.1016/j.cryobiol.2004.01.008

17. Day JG, Stacey GN. Cryopreservation and Freeze-Drying Protocols. 3rd ed. Humana Press; 2007. doi:10.1007/978-1-59745-362-2

18. International Society for Biological and Environmental Repositories. Best Practices for Repositories Collection, Storage, Retrieval, and Distribution of Biological Materials for Research. 4th ed. Biopreserv Biobank. 2018;16(2):79-161. doi:10.1089/bio.2018.0022

19. Hønge BL, Petersen MS, Olesen R, Møller BK, Erikstrup C. Optimizing recovery of frozen human peripheral blood mononuclear cells for flow cytometry. PLoS One. 2017;12(11):e0187440. doi:10.1371/journal.pone.0187440

20. Rapatz GL, Sullivan JJ, Luyet BJ. Preservation of erythrocytes in blood containing various cryoprotective agents, frozen at various rates and brought to a given final temperature. Cryobiology. 1968;5(1):18-25. doi:10.1016/s0011-2240(68)80135-3

21. Katenz E, Vondran FW, Schwartlander R, et al. An optimized protocol for human lymphocyte cryopreservation. Hum Immunol. 2007;68(9):740-747. doi:10.1016/j.humimm.2007.06.003

22. Reimann KA, Chernoff M, Wilkening CL, Nickerson CE, Landay AL; ACTG Immunology Advanced Technology/Virology Specialty Laboratory Working Group. Preservation of lymphocyte immunophenotype and proliferative responses in cryopreserved peripheral blood mononuclear cells from human immunodeficiency virus type 1-infected donors: implications for multicenter clinical trials. Clin Diagn Lab Immunol. 2000;7(3):352-359. doi:10.1128/CDLI.7.3.352-359.2000

23. Lemieux J, Jobin C, Simard C, Néron S. A global look into human T cell subsets before and after cryopreservation using multiparametric flow cytometry and two-dimensional visualization analysis. J Immunol Methods. 2016;434:73-82. doi:10.1016/j.jim.2016.04.010

24. Suni MA, Ghanekar SA, Houck DW, et al. CD4(+)CD8(dim) T lymphocytes exhibit enhanced cytokine expression, proliferation and cytotoxic activity in response to HCMV and HIV-1 antigens. Eur J Immunol. 2001;31(8):2512-2520. doi:10.1002/1521-4141(200108)31:8<2512::aid-immu2512>3.0.co;2-m

25. Maecker HT, Trotter J. Flow cytometry controls, instrument setup, and the determination of positivity. Cytometry A. 2006;69(9):1037-1042. doi:10.1002/cyto.a.20333

26. Vermes I, Haanen C, Steffens-Nakken H, Reutelingsperger C. A novel assay for apoptosis. Flow cytometric detection of phosphatidylserine expression on early apoptotic cells using fluorescein labelled Annexin V. J Immunol Methods. 1995;184(1):39-51. doi:10.1016/0022-1759(95)00072-i

27. Perry SW, Norman JP, Barbieri J, Brown EB, Gelbard HA. Mitochondrial membrane potential probes and the proton gradient: a practical usage guide. Biotechniques. 2011;50(2):98-115. doi:10.2144/000113610

28. Costantini A, Mancini S, Giuliodoro S, et al. Effects of cryopreservation on lymphocyte immunophenotype and function. J Immunol Methods. 2003;278(1-2):145-155. doi:10.1016/s0022-1759(03)00202-3

29. Roederer M. Compensation in flow cytometry. Curr Protoc Cytom. 2002;Chapter 1:Unit 1.14. doi:10.1002/0471142956.cy0114s22

30. Zheng Y, Liu X, Le W, Xie L, et al. A human circulating immune cell landscape in aging and COVID-19. Protein Cell. 2020;11(10):740-770. doi:10.1007/s13238-020-00762-2

31. Ilicic T, Kim JK, Kolodziejczyk AA, et al. Classification of low quality cells from single-cell RNA-seq data. Genome Biol. 2016;17:29. doi:10.1186/s13059-016-0888-1

32. Levine BL, Miskin J, Wonnacott K, Keir C. Global manufacturing of CAR T cell therapy. Mol Ther Methods Clin Dev. 2017;4:92-101. doi:10.1016/j.omtm.2016.12.006

33. Food and Drug Administration. Guidance for Industry: Process Validation: General Principles and Practices. January 2011.

34. Ramachandran H, Laux J, Moldovan I, Caspell R, Lehmann PV, Subbramanian RA. Optimal thawing of cryopreserved peripheral blood mononuclear cells for use in high-throughput human immune monitoring studies. Cells. 2012;1(3):313-324. doi:10.3390/cells1030313

35. Rowley SD, Anderson GL. Effect of DMSO exposure without cryopreservation on hematopoietic progenitor cells. Bone Marrow Transplant. 1993;11(5):389-393.

36. Kawano Y, Takaue Y, Watanabe A, et al. Cryopreservation of small numbers of CD34+ cells harvested from granulocyte colony-stimulating factor-mobilized peripheral blood. Blood. 1995;85(12):3643-3648.

37. International Conference on Harmonisation. ICH Q2(R1) Validation of Analytical Procedures: Text and Methodology. November 2005.

38. Food and Drug Administration. 21 CFR Part 211: Current Good Manufacturing Practice for Finished Pharmaceuticals. April 2020.

39. Food and Drug Administration. Data Integrity and Compliance With Drug CGMP: Questions and Answers. December 2018.

40. Fahy GM, Wowk B, Wu J, Paynter S. Improved vitrification solutions based on the predictability of vitrification solution toxicity. Cryobiology. 2004;48(1):22-35. doi:10.1016/j.cryobiol.2003.11.004

41. Dong Q, Hill D, VandeVoort CA. Interactions among pre-cryopreservation cooling, cryoprotectant, and controlled-rate freezing on human sperm viability. Cryobiology. 2011;63(3):230-235. doi:10.1016/j.cryobiol.2011.09.002

42. Wang S, Xia X, Qu X, Zhou T, Lang M. Cryopreservation of human T cells: the effect of different freezing methods. Cryobiology. 2020;95:166-172. doi:10.1016/j.cryobiol.2020.03.009

43. Stroncek DF, Ren J, Lee DW, et al. Elutriated lymphocytes for manufacturing chimeric antigen receptor T cells. J Transl Med. 2017;15(1):59. doi:10.1186/s12967-017-1160-5

44. Simione FP, Sharp DW. National Institutes of Health (NIH) consensus development program: important advances in cryopreservation. Cryobiology. 2007;54(3):362-363. doi:10.1016/j.cryobiol.2007.03.002
